12Watt 12Volt slim LED strip Constant Voltage Driver UL from China manufacturer

12Watt 12Volt slim LED strip Constant Voltage Driver UL

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNP12-12VF(UL)

Production Capacity: 1000pcs/day

Delivery Date: 30days

Means of Transport: Ocean

Packing: paper box inner, carton out...

Brand Name: SNAPPY

Input Voltage:120VAC
Input Frequency:60Hz
Output Power:12W
Constant Output Voltage:12V
Max Output Current:1.0A
UL LED CV slim Power supply

Technical Data

Product name :12Watt 12Volt slim LED Constant Voltage Driver UL

Input Voltage:120VAC
Input Frequency:60Hz
Output Power:12W
Constant Output Voltage:12V
Max Output Current:1.0A
Dimension:L128.9xW51.2xH13.2mm
Ta:45Centigrade Tc:80Centigrade
Body:PC
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
UL 1310 Class 2
FCC PART 15
Approval: CE UL

Features
LED strip, LED panel light, LED Linear Lighting, LED Cabinet Lighting, LED tube Lights

Characteristics

Rated input voltage:AC120V 60Hz(power factor measured at AC120V and full load)
Model No.	Constant out voltage	Load	Max output Current	PF	Ta	Tc	LxWxH	Approval
SNP12-12VF(UL)	12V	0-12W	1.0A	0.5	45ºC	80ºC	128.9x51.2x13.2	UL CE RoHS

Images

..............Size image of 12Watt 12Volt slim LED Strip power converter

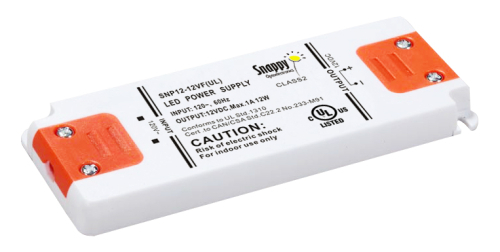

.................................Image of 12W indoor LED Driver

Series

UL Constant Voltage Series

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V andfull load)
Model No.	Constant out Voltage	Load	Max output Current	PF	Ta	Tc	LxWxH	Approval
SNP12-12VF(UL)	12V	0-12W	1.0A	0.5	45ºC	80ºC	128.9X51.2X13.2	UL RoHS
SNP12-24VF(UL)	24V	0-12W	0.5A	0.5	45ºC	80ºC	128.9X51.2X13.2	UL RoHS
SNP15-12VL(UL)	12V	0-15W	1.25A	0.6	45ºC	80ºC	123.7X45.7X20.2	UL RoHS
SNP15-24VL(UL)	24V	0-15W	0.625A	0.6	45ºC	80ºC	123.7X45.7X20.2	UL RoHS
SNP30-12VF(UL)	12V	0-30W	2.5A	0.9	45ºC	85ºC	161.8X58.9X18.6	UL RoHS
SNP30-24VF(UL)	24V	0-30W	1.25A	0.9	45ºC	85ºC	161.8X58.9X18.6	UL RoHS
SNP100-12VLP(UL)	12V	0-100W	8.3A	0.9	45ºC	85ºC	230X87X41.6	UL RoHS
SNP100-24VLP(UL)	24V	0-100W	4.2A	0.9	45ºC	85ºC	230X87X41.6	UL RoHS

UL Constant Current Series

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V andfull load)
Model No.	Constant out Current	Load	Max output Voltage	PF	Ta	Tc	LxWxH	Approval
SNP12-350IF(UL)	350mA	0-12W	34VDC	0.5	45ºC	80ºC	128.9X51.2X13.2	TUV CE RoHS SAA
SNP12-700IF(UL)	700mA	0-12W	17VDC	0.5	45ºC	80ºC	128.9X51.2X13.2	TUV CE RoHS SAA
SNP15-350IL(UL)	350mA	7-15W	42VDC	0.6	45ºC	80ºC	123.7X45.7X20.2	TUV CE RoHS SAA
SNP15-700IL(UL)	700mA	7-15W	21VDC	0.6	45ºC	80ºC	123.7X45.7X20.2	TUV CE RoHS SAA
