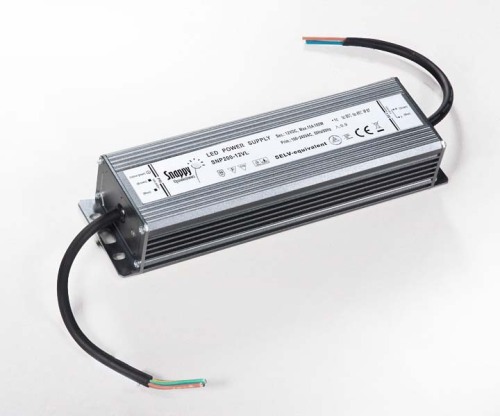

200Watt 24Volt High Power LED Driver from China manufacturer

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNP200-24VLP

Production Capacity: 1000pcs/day

Delivery Date: 30days

Means of Transport: Ocean

Packing: paper box inner, carton out...

Brand Name: GTEKINTL

Input Voltage:100-240VAC
Input Frequency:50/60Hz
Output Power:200W
Constant Output Voltage:24VDC
Max Output Current:8.3A
TUV LED CV Driver

Technical Data

Product name :200Watt 24Volt High Power LED Constant Voltage Driver

Voltage:100-240VAC
Input Frequency:50/60Hz
Output Power:200W
Constant Output Voltage:24VDC
Max Output Current:8.3A
Dimension:L237xW67.4xH42mm
Ta:45 Centigrade Tc:85 Centigrade
Body:Metal Body By Waterproof Grade IP67
12VDC Constant Voltage Output and Max 180W Load
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
Safety According to EN61347-1,EN61347-2-13
EMI According to EN55015
EMS According to EN61000-3-2;EN61000-3-3;EN61547
Approbation Mark:CE ROHS;TUV

Features & Application

LED Street Lights, LED Garden Lights, LED High Bay Lightings, LED Inground Lamps, Underwater LED lights

Characteristics

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V and full load)
Model No.	Constant out voltage	Load	Max output Current	PF	Ta	Tc	LxWxH	Approval
SNP200-24VLP	24V	0-200W	8.3A	0.95	45ºC	85ºC	237X67.4X42	TUV CE RoHS IP67
