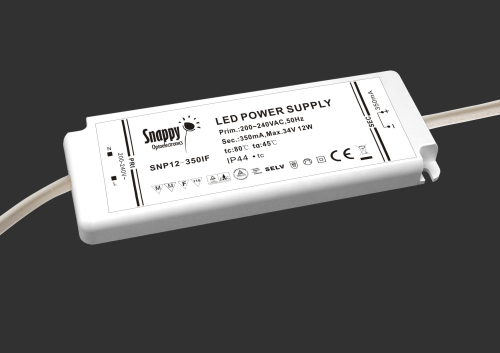

12Watt 350mA IP44 LED tube lights Constant Current Power from China manufacturer

12Watt 350mA IP44 LED tube lights Constant Current Power

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNP12-350IF+IP44

Production Capacity: 1000pcs/day

Delivery Date: 30days

Means of Transport: Ocean

Packing: paper box inner, carton out...

Brand Name: SNAPPY

Input Voltage:180-264VAC
Input Frequency:50Hz
Output Power:12W
Constant Output Current:350mA
Max Output Voltage:34VDC
Dimension:L127xW49xH10

Technical Data

Product name :12Watt 350mA IP44 slim LED Constant Current Power supply

Input Voltage:200-240VAC
Input Frequency:50Hz
Output Power:12W
Constant Output Current:350mA
Max Output Voltage:34VDC
Dimension:L127xW49xH10mm
Ta:45Centigrade Tc:80Centigrade
Body:PC
350mA Constant Current Output and Max 12W Load
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
Safety According to EN61347-1,EN61347-2-13
EMI According to EN55015
EMS According to EN61000-3-2;EN61000-3-3;EN61547
Approbation Mark:CE ROHS;TUV

Features & Application

LED strip, LED Panel Lights, LED Linear Lighting, LED Cabinet Lighting, LED Tube Lights

Characteristics

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V and full load)
Model No.	Constant out Current	Load	Max output Voltage	PF	Ta	Tc	LxWxH	Approval
SNP12-350IF	350mA	0-12W	34VDC	0.5	45ºC	80ºC	127.3X49.8X10.7	TUV CE RoHS

Images

...........Size image of 12Watt 350mA IP44 slim LED Power supply

Constant Current Series

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V andfull load)
Model No.	Constant out Current	Load	Max output Voltage	PF	Ta	Tc	LxWxH	Approval
SNP6-350IF	350mA	0-6W	17.5VDC	0.5	45ºC	80ºC	98.4X45.6X10.7	TUV CE RoHS SAA
SNP6-700IF	700mA	0-6W	9VDC	0.5	45ºC	80ºC	98.4X45.6X10.7	TUV CE RoHS SAA
SNP6-350IL	350mA	3-6W	18.5VDC	0.5	45ºC	80ºC	94.5X46.2X19.5	TUV CE RoHS SAA
SNP6-700IF	700mA	3-6W	9.5VDC	0.5	45ºC	80ºC	94.5X46.2X19.5	TUV CE RoHS SAA
SNP12-350IF	350mA	0-12W	34VDC	0.5	45ºC	80ºC	127.3X49.8X10.7	TUV CE RoHS SAA
SNP12-700IF	700mA	0-12W	17VDC	0.5	45ºC	80ºC	127.3X49.8X10.7	TUV CE RoHS SAA
SNP15-350IF	350mA	0-15W	43VDC	0.5	45ºC	80ºC	128X50X13	TUV CE RoHS SAA
SNP15-500IF	500mA	0-15W	30VDC	0.5	45ºC	80ºC	128X50X13	TUV CE RoHS SAA
SNP15-700IF	700mA	0-15W	21VDC	0.5	45ºC	80ºC	128X50X13	TUV CE RoHS SAA
SNP15-350IL	350mA	7-15W	42VDC	0.5	45ºC	80ºC	123X44.6X19.2	TUV CE RoHS SAA
SNP15-700IL	700mA	7-15W	21VDC	0.5	45ºC	80ºC	123X44.6X19.2	TUV CE RoHS SAA
SNP20-350IF	350mA	0-20W	58VDC	0.5	45ºC	80ºC	154X50X114	TUV CE RoHS SAA
SNP20-500IF	500mA	0-20W	40VDC	0.5	45ºC	80ºC	154X50X114	TUV CE RoHS SAA
SNP20-700IF	700mA	0-20W	29VDC	0.5	45ºC	80ºC	154X50X114	TUV CE RoHS SAA
