Technical Data
Product name :
30Watt 12Volt slim LED Constant Voltage Driver
Input Voltage:100-240VAC
Input Frequency:47-63Hz
Output Power:30W
Constant Output Voltage:12VDC
Max Output Current:2.5A
Dimension:L159xW59xH16mm
Ta:40Centigrade Tc:80Centigrade
Body:PC
12VDC Constant Voltage Output and Max 30W Load
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
Safety According to EN61347-1,EN61347-2-13
EMI According to EN55015
EMS According to EN61000-3-2;EN61000-3-3;EN61547
Approbation Mark:CE ROHS;TUV
Features & Application
LED strip, LED Panel Lights, LED Linear Lighting, LED Cabinet Lighting, LED Tube Lights
Characteristics
Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V and full load) |
Model No. | Constant out voltage | Load | Max output Current | PF | Ta | Tc | LxWxH | Approval |
SNP30-12VF | 12V | 0-30W | 2.5A | 0.9 | 45ºC | 85ºC | 159.9X57.8X18 | TUV CE RoHS |
Images
.....................Size image of
30Watt 12Volt LED tube power converter

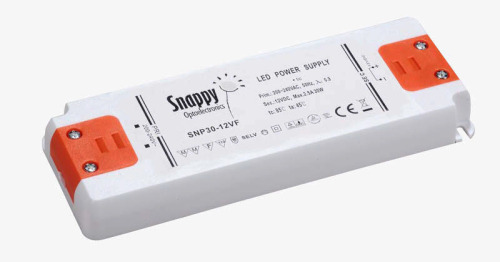

............................. Image of
30W High Efficiency LED strip Driver
Series
