30Watt 24Volt Flexible LED strip Constant Voltage Driver from China manufacturer

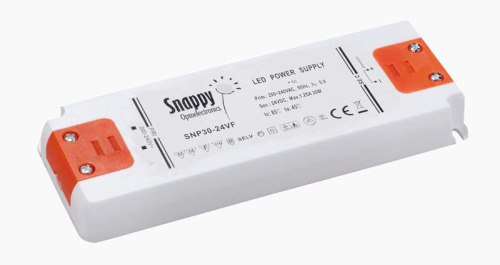

30Watt 24Volt Flexible LED strip Constant Voltage Driver

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNP30-24VF

Production Capacity: 1000pcs/day

Delivery Date: 30days

Means of Transport: Ocean

Packing: paper box inner, carton out...

Brand Name: GTEKINTL

Input Voltage:100-240VAC
Input Frequency:47-63Hz
Output Power:30W
Constant Output Voltage:24VDC
Max Output Current:1.25A
TUV CV slim Driver

Technical Data

Product name :30Watt 24Volt slim LED Constant Voltage Driver

Input Voltage:100-240VAC
Input Frequency:47-63Hz
Output Power:30W
Constant Output Voltage:24VDC
Max Output Current:1.25A
Dimension:L159xW59xH16mm
Ta:40 CentigradeTc:80Centigrade
Body:PC
24VDC Constant Voltage Output and Max 30W Load
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
Safety According to EN61347-1,EN61347-2-13
EMI According to EN55015
EMS According to EN61000-3-2;EN61000-3-3;EN61547
Approbation Mark:CE ROHS;TUV

Features & Application

LED strip, LED Panel Lights, LED Linear Lighting, LED Cabinet Lighting, LED Tube Lights

Characteristics

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V and full load)
Model No.	Constant out voltage	Load	Max output Current	PF	Ta	Tc	LxWxH	Approval
SNP30-24VF	24V	0-30W	1.25A	0.9	45ºC	85ºC	159.9X57.8X18	TUV CE RoHS
