200Watt 12Volt Waterproof Constant Voltage Driver from China manufacturer

200Watt 12Volt Waterproof Constant Voltage Driver

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNP200-12VLP

Production Capacity: 1000pcs/day

Delivery Date: 30days

Means of Transport: Ocean

Packing: paper box inner, carton out...

Brand Name: GTEKINTL

Input Voltage:100-240VAC
Input Frequency:50/60Hz
Output Power:200W
Constant Output Voltage:12VDC
Max Output Current:16.7A
TUV LED CV Driver

Technical Data

Product Name:200W 12V LED Outdoor IP67 LED Driver

Input Voltage:100-240VAC
Input Frequency:50/60Hz
Output Power:200W
Constant Output Voltage:12VDC
Max Output Current:16.7A
Dimension:L237xW67.4xH42mm
Ta:45 Centigrade Tc:85 Centigrade
Body:Metal Body By Waterproof Grade IP67
12VDC Constant Voltage Output and Max 180W Load
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
Safety According to EN61347-1,EN61347-2-13
EMI According to EN55015
EMS According to EN61000-3-2;EN61000-3-3;EN61547
Approbation Mark:CE ROHS;TUV

Features & Application

LED Street Lights, LED Garden Lights, LED High Bay Lightings, LED Inground Lamps, Underwater LED lights

Characteristics

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V and full load)
Model No.	Constant out voltage	Load	Max output Current	PF	Ta	Tc	LxWxH	Approval
SNP200-12VLP	12V	0-180W	16.7A	0.95	45ºC	85ºC	237X67.4X42	TUV CE RoHS IP67

Images

.....................Size image of 200Watt 12Volt LED Road Light Constant Voltage Power Supply

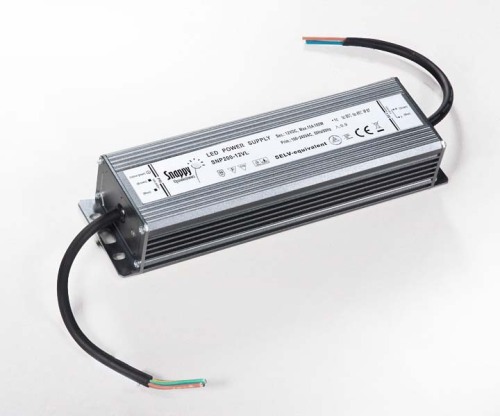

.....................Image of 200Watt 12Volt LED Road Light Constant Voltage Power Supply
