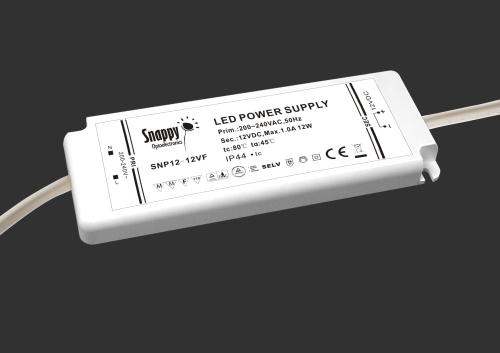

12Watt 12Volt IP44 LED Linear Waterproof LED Power supply from China manufacturer

12Watt 12Volt IP44 LED Linear Waterproof LED Power supply

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNP12-12VFP

Production Capacity: 1000pcs/day

Delivery Date: 30days

Means of Transport: Ocean

Packing: paper box inner, carton out...

Brand Name: GTEKINTL

Input Voltage:200-240VAC
Input Frequency:50Hz
Output Power:12W
Constant Output Voltage:12VDC
Max Output Current:1.0A
Dimension:L127xW49xH10m

Technical Data

Product name :12Watt 12Volt IP44 slim LED Constant Voltage Power supply

Input Voltage:200-240VAC
Input Frequency:50Hz
Output Power:12W
Constant Output Voltage:12VDC
Max Output Current:1.0A
Dimension:L127xW49xH10mm
Ta:45 Centigrade Tc:80Centigrade
Body:PC Body By Waterproof Grade IP44
12VDC Constant Voltage Output and Max 12W Load
Open Circuit;Short Circuit;Over Load;
Over Heat Protection
Safety According to EN61347-1,EN61347-2-13
EMI According to EN55015
EMS According to EN61000-3-2;EN61000-3-3;EN61547
Approbation Mark:CE ROHS;TUV

Features & Application

LED strip, LED Panel Lights, LED Linear Lighting, LED Cabinet Lighting, LED Tube Lights

Characteristics

Rated input voltage:AC200-240V 50Hz(power factor measured at AC230V and full load)
Model No.	Constant out voltage	Load	Max output Current	PF	Ta	Tc	LxWxH	Approval
SNP12-12VFP	12V	0-12W	1.0A	0.5	45ºC	80ºC	127.3X49.8X10.7	TUV CE RoHS
